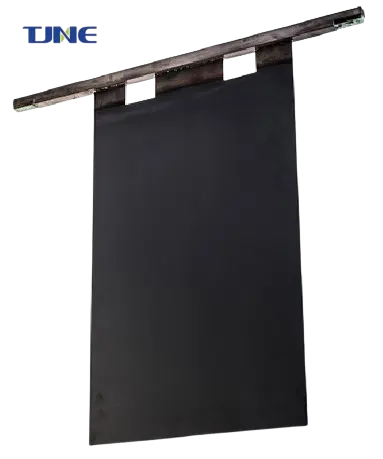

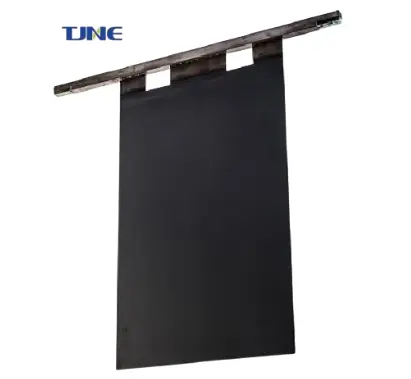

Titanium electrodes have emerged as a promising solution for enhancing the copper electrodeposition process in various industrial applications. These electrodes offer several advantages over traditional materials, including improved efficiency, durability, and quality of the final copper products. In this blog post, we will explore the benefits of using titanium electrodes for copper electrodeposition and address some common questions related to this technology.

How does titanium compare to other electrode materials for copper electrodeposition?

Titanium electrodes have gained significant attention in the field of copper electrodeposition due to their unique properties and advantages over conventional electrode materials. To understand the benefits of using these electrodes, it's essential to compare them with other commonly used materials in the industry.

One of the primary advantages of titanium electrodes is their exceptional corrosion resistance. Unlike traditional materials such as stainless steel or graphite, titanium electrode has a stable oxide layer on its surface, which protects it from chemical attack in aggressive electrodeposition environments. This resistance to corrosion translates to longer electrode life and reduced maintenance costs for electrodeposition operations.

Another critical factor is the conductivity of the electrode material. While titanium itself is not as conductive as some other metals, the metal oxide coating allows for the creation of a highly conductive surface layer. This layer combines the corrosion resistance of titanium with excellent electrical conductivity. As a result, titanium electrodes can achieve higher current densities and more uniform current distribution compared to other materials, leading to improved plating efficiency and quality.

The dimensional stability of titanium electrodes is also superior to many alternatives. During the electrodeposition process, some electrode materials may warp or deform due to thermal stress or chemical reactions. Titanium, however, maintains its shape and size even under harsh conditions, ensuring consistent performance and plating results over time.

Furthermore, the surface characteristics of titanium electrodes can be tailored to optimize the electrodeposition process. By controlling the electrodeposition parameters, it's possible to create electrodes with specific surface morphologies that enhance mass transfer and promote uniform copper deposition. This level of customization is often not achievable with conventional electrode materials.

When it comes to environmental considerations, titanium electrodes offer advantages as well. They do not release harmful substances into the electrodeposition bath, unlike some carbon-based electrodes that may shed particles over time. This not only contributes to a cleaner electrodeposition process but also helps maintain the purity of the deposited copper.

In terms of cost-effectiveness, while the initial investment in titanium electrodes may be higher than some alternatives, their long lifespan and improved performance often result in lower overall operational costs. The reduced need for electrode replacement and maintenance, combined with enhanced electrodeposition efficiency, can lead to significant savings in the long run.

It's worth noting that the choice of electrode material depends on various factors, including the specific electrodeposition application, bath composition, and desired properties of the copper deposit. However, for many high-performance electrodeposition operations, titanium electrodes offer a compelling combination of durability, efficiency, and quality that is difficult to match with other materials.

What are the key factors affecting the performance of titanium electrodes in copper electrodeposition?

The performance of titanium electrodes in copper electrodeposition processes is influenced by several key factors. Understanding these factors is crucial for optimizing the electrodeposition process and achieving the desired results. Let's explore the most significant variables that affect the performance of these electrodes.

1. Electrode composition:

The composition of the metal oxide coating on the titanium substrate plays a vital role in electrode performance. Typically, this layer consists of platinum group metals (PGMs) or other metal oxides. The choice of coating material affects the electrode's catalytic activity, conductivity, and stability. For instance, iridium oxide coatings are known for their excellent stability and low overpotential for oxygen evolution, which can be beneficial in certain copper electrodeposition applications.

2. Electrode geometry and design:

The geometry of the electrode significantly impacts current distribution and mass transfer in the electrodeposition bath. Titanium electrodes can be manufactured in various shapes and sizes, including plates, meshes, and expanded metal forms. Each design has its advantages depending on the specific plating requirements.

For example, mesh electrodes offer high surface area and improved mass transfer, which can be beneficial for achieving uniform copper deposits. Plate electrodes, on the other hand, may be preferred in applications where precise dimensional control is critical. The choice of electrode design should consider factors such as current distribution, gas evolution, and the geometry of the parts being plated.

3. Electrodeposition bath composition and conditions:

The composition of the copper electrodeposition bath significantly affects electrode performance. Factors such as copper concentration, acid content, and the presence of additives all play a role. Titanium electrodes are generally compatible with a wide range of electrodeposition bath compositions, but their performance can be optimized by adjusting these parameters.

For instance, the presence of chloride ions in the bath can affect the stability of some electrode coatings. In such cases, selecting a coating material resistant to chloride attack or adjusting the bath composition may be necessary to maintain electrode performance.

4. Current density and waveform:

The applied current density is a critical factor in copper electrodeposition processes. Titanium electrodes typically allow for higher current densities compared to some traditional materials, which can lead to increased electrodeposition rates. However, it's essential to operate within the optimal current density range to avoid issues such as gas evolution or uneven copper deposition.

The current waveform (e.g., DC, pulsed DC, or periodic reverse) also affects electrode performance. Pulsed or periodic reverse waveforms can sometimes improve deposit uniformity and reduce gas bubbling at the electrode surface, enhancing overall electrodeposition quality.

5. Temperature and agitation:

The temperature of the electrodeposition bath affects reaction kinetics and mass transfer processes. Titanium electrodes generally perform well across a wide temperature range, but optimal performance is typically achieved within a specific temperature window for each application.

Agitation of the electrodeposition solution is another crucial factor. Proper agitation helps maintain uniform electrolyte concentration near the electrode surface, promotes mass transfer, and can assist in removing gas bubbles. The type and degree of agitation should be carefully controlled to optimize electrode performance and deposit quality.

In conclusion, the performance of titanium electrodes in copper electrodeposition processes is influenced by a complex interplay of factors. By carefully considering and optimizing these variables, electrodeposition operators can leverage the full potential of these advanced electrodes to achieve superior copper electrodeposition results. Regular monitoring and adjustment of these factors are essential for maintaining optimal electrode performance and ensuring high-quality copper deposits.

How can titanium electrodes improve the efficiency and quality of copper electrodeposition?

Titanium electrodes have the potential to significantly enhance both the efficiency and quality of copper electrodeposition processes. These improvements stem from the unique properties of these electrodes and their interactions with the electrodeposition environment. Let's explore in detail how these electrodes contribute to better electrodeposition outcomes.

1. Enhanced current efficiency:

One of the primary ways titanium electrodes improve electrodeposition efficiency is through their ability to support higher current densities. The conductive coating on these electrodes, typically composed of platinum group metals or other metal oxides, allows for efficient electron transfer. This means that more current can be applied to the electrodeposition process without causing unwanted side reactions or electrode degradation.

Higher current densities translate directly to faster electrodeposition rates, allowing for increased production throughput. However, it's important to note that the optimal current density depends on various factors, including bath composition and part geometry. Titanium electrodes provide the flexibility to operate at a wider range of current densities, enabling process optimization for different applications.

2. Improved current distribution:

The uniform and stable surface of titanium electrodes contributes to better current distribution across the electrodeposition surface. This uniformity is crucial for achieving consistent copper deposits, especially on complex geometries or large surface areas.

Improved current distribution leads to several benefits:

- More even copper deposits

- Reduced risk of "burning" or nodule formation in high current density areas

- Better coverage of low current density areas, such as recesses or interior surfaces

- Overall improvement in deposit quality and appearance

3. Reduced side reactions:

The catalytic properties of the metal oxide coating can be tailored to favor the copper reduction reaction while minimizing unwanted side reactions, such as hydrogen evolution. This selectivity improves the overall efficiency of the electrodeposition process by ensuring that a larger proportion of the applied current goes towards copper deposition rather than being wasted on secondary reactions.

Reduced hydrogen evolution has several additional benefits:

- Decreased risk of hydrogen embrittlement in susceptible materials

- Improved deposit quality by minimizing pitting or porosity caused by hydrogen bubbles

- Enhanced energy efficiency of the electrodeposition process

4. Longer electrode lifespan:

The corrosion resistance of titanium, combined with the stability of the metal oxide coating, results in electrodes that maintain their performance over extended periods. This longevity brings several efficiency improvements:

- Reduced downtime for electrode replacement or maintenance

- More consistent plating results over time, as electrode degradation is minimized

- Lower operational costs due to decreased need for electrode replacement

5. Improved mass transfer:

The surface morphology of titanium electrodes coated with metal oxide can be optimized to enhance mass transfer in the electrodeposition bath. This can be achieved through controlled roughness or specific surface structures created during the electrodeposition process.

Enhanced mass transfer contributes to efficiency and quality in several ways:

- More uniform copper concentration at the cathode surface, leading to more consistent deposition

- Reduced diffusion limitations, allowing for higher electrodeposition rates

- Improved incorporation of brighteners and other additives into the copper deposit

In conclusion, titanium electrodes offer a multifaceted approach to improving both the efficiency and quality of copper electrodeposition processes. By addressing key aspects such as current efficiency, distribution, side reactions, and mass transfer, these electrodes provide a comprehensive solution for enhancing electrodeposition outcomes. As the technology continues to evolve, we can expect further refinements and innovations that will push the boundaries of what's possible in copper electrodeposition applications.
