Mixed Metal Oxide (MMO) titanium tubular anodes have become indispensable components in modern corrosion protection systems. These advanced anodes play a crucial role in safeguarding various structures and equipment against the detrimental effects of corrosion, particularly in challenging environments. The unique properties of MMO titanium tubular anodes, including their durability, efficiency, and versatility, make them essential for ensuring the longevity and integrity of valuable assets across multiple industries.

How do MMO Titanium Tubular Anodes work in cathodic protection systems?

MMO Titanium Tubular Anodes are a cornerstone of effective cathodic protection systems, which are designed to prevent corrosion in metal structures. These anodes function by introducing an electric current into the environment surrounding the protected structure, effectively altering the electrochemical conditions that lead to corrosion.

The working principle of MMO Titanium Tubular Anodes in cathodic protection systems is based on the fundamental concept of electrochemistry. In a corrosive environment, metal structures act as cathodes, releasing electrons and forming positively charged metal ions. This process leads to the degradation of the metal over time. Cathodic protection systems aim to reverse this process by supplying electrons to the metal structure, thereby preventing the release of metal ions and halting corrosion.

MMO Titanium Tubular Anodes play a crucial role in this process by serving as the source of these protective electrons. The anode is connected to a power source and the metal structure to be protected. When current flows through the system, the anode releases electrons into the surrounding electrolyte (often soil or water), which then flow to the metal structure. This flow of electrons effectively polarizes the metal structure, shifting its electrical potential to a level where corrosion is thermodynamically unfavorable.

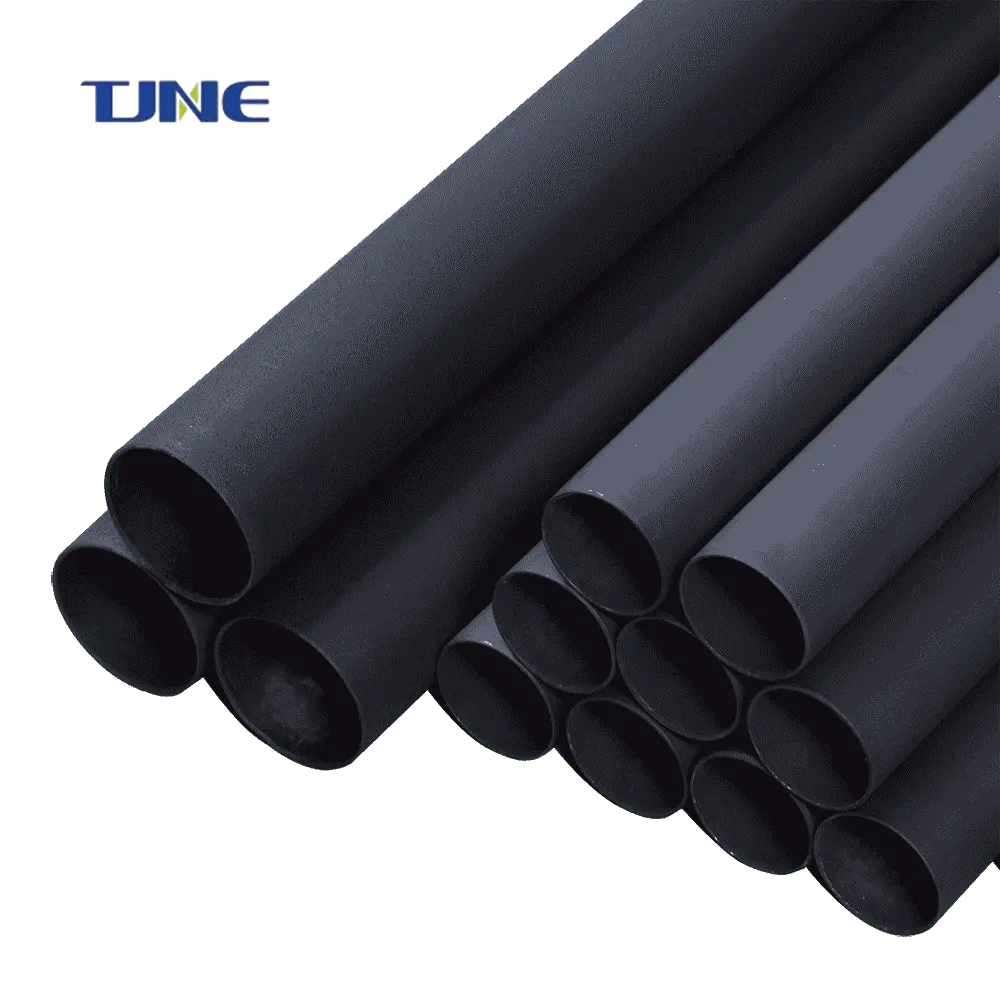

The tubular design of these anodes offers several advantages in this application. The cylindrical shape provides a large surface area for current distribution, ensuring an even and efficient spread of the protective current. This design also allows for easy installation in various configurations, such as deep groundbeds or distributed anode systems, depending on the specific requirements of the protection scheme.

The use of titanium as the base metal for these anodes is another critical factor in their effectiveness. Titanium is known for its excellent corrosion resistance and mechanical strength, making it an ideal substrate for long-term use in harsh environments. The titanium substrate is coated with a mixed metal oxide layer, typically composed of precious metal oxides such as iridium, ruthenium, or tantalum. This coating is what gives the anode its "mixed metal oxide" designation and is responsible for its exceptional electrochemical properties.

The MMO coating serves several essential functions:

1. It provides a highly conductive surface for electron transfer, ensuring efficient current distribution.

2. It acts as a catalyst, lowering the overpotential required for the anodic reaction and thus improving the overall efficiency of the cathodic protection system.

3. It offers exceptional durability, resisting wear and degradation even under high current densities and in aggressive environments.

The combination of the titanium substrate and the MMO coating results in an anode that can operate effectively for extended periods, often lasting decades in properly designed and maintained systems. This longevity is a significant advantage over traditional anode materials, which may require frequent replacement.

In practice, the implementation of MMO Tubular Titanium Anodes in cathodic protection systems involves careful design and engineering. Factors such as the size and shape of the structure to be protected, the resistivity of the environment, and the required current density must all be considered when selecting and positioning the anodes. Advanced modeling techniques are often employed to optimize anode placement and ensure comprehensive protection of the entire structure.

What are the advantages of using MMO Tubular Titanium Anodes over traditional anodes?

MMO Titanium Tubular Anodes have gained significant popularity in corrosion protection systems due to their numerous advantages over traditional anode materials. These advanced anodes offer a combination of performance, durability, and efficiency that makes them superior in many applications. Let's explore the key advantages that set MMO Titanium Tubular  Anodes apart from their conventional counterparts.

1. Superior Longevity and Durability

One of the most significant advantages of MMO Titanium Tubular Anodes is their exceptional longevity. Traditional anodes, such as graphite or high-silicon cast iron, tend to have shorter lifespans, especially in harsh environments. In contrast, MMO Titanium Tubular Anodes can last for decades when properly designed and maintained. This extended lifespan is attributed to several factors:

- Corrosion Resistance: The titanium substrate is inherently resistant to corrosion, providing a stable base that does not degrade over time.

- Wear Resistance: The MMO coating is highly resistant to wear and erosion, maintaining its effectiveness even under high current densities.

- Dimensional Stability: Unlike some traditional anodes that change shape or size as they corrode, MMO Titanium Tubular Anodes maintain their dimensions throughout their operational life.

This longevity translates to reduced maintenance requirements and lower lifecycle costs, making MMO Titanium Tubular Anodes a cost-effective choice for long-term corrosion protection projects.

2. Higher Current Capacity and Efficiency

MMO Tubular Titanium Anodes offer superior current capacity compared to many traditional anode materials. This higher capacity allows for more effective corrosion protection, especially in large-scale applications or highly corrosive environments. The advantages in terms of current capacity and efficiency include:

- High Current Density: MMO coatings can support much higher current densities than traditional materials without degradation.

- Low Consumption Rate: The electrochemical reactions at the anode surface consume very little of the anode material, contributing to its long life.

- Consistent Performance: The stable MMO coating ensures consistent current output over the anode's lifetime, unlike some traditional anodes that may become less effective as they degrade.

These characteristics make MMO Titanium Tubular Anodes particularly suitable for impressed current cathodic protection systems where precise control over current output is crucial.

3. Versatility and Adaptability

MMO Titanium Tubular Anodes demonstrate remarkable versatility, making them suitable for a wide range of applications and environments. This adaptability is a significant advantage over traditional anodes, which may be limited to specific conditions. The versatility of MMO Titanium Tubular Anodes is evident in several aspects:

- Environmental Compatibility: These anodes perform well in soil, freshwater, and seawater environments, making them suitable for diverse applications.

- Temperature Tolerance: They can operate effectively across a wide temperature range, from freezing conditions to elevated temperatures.

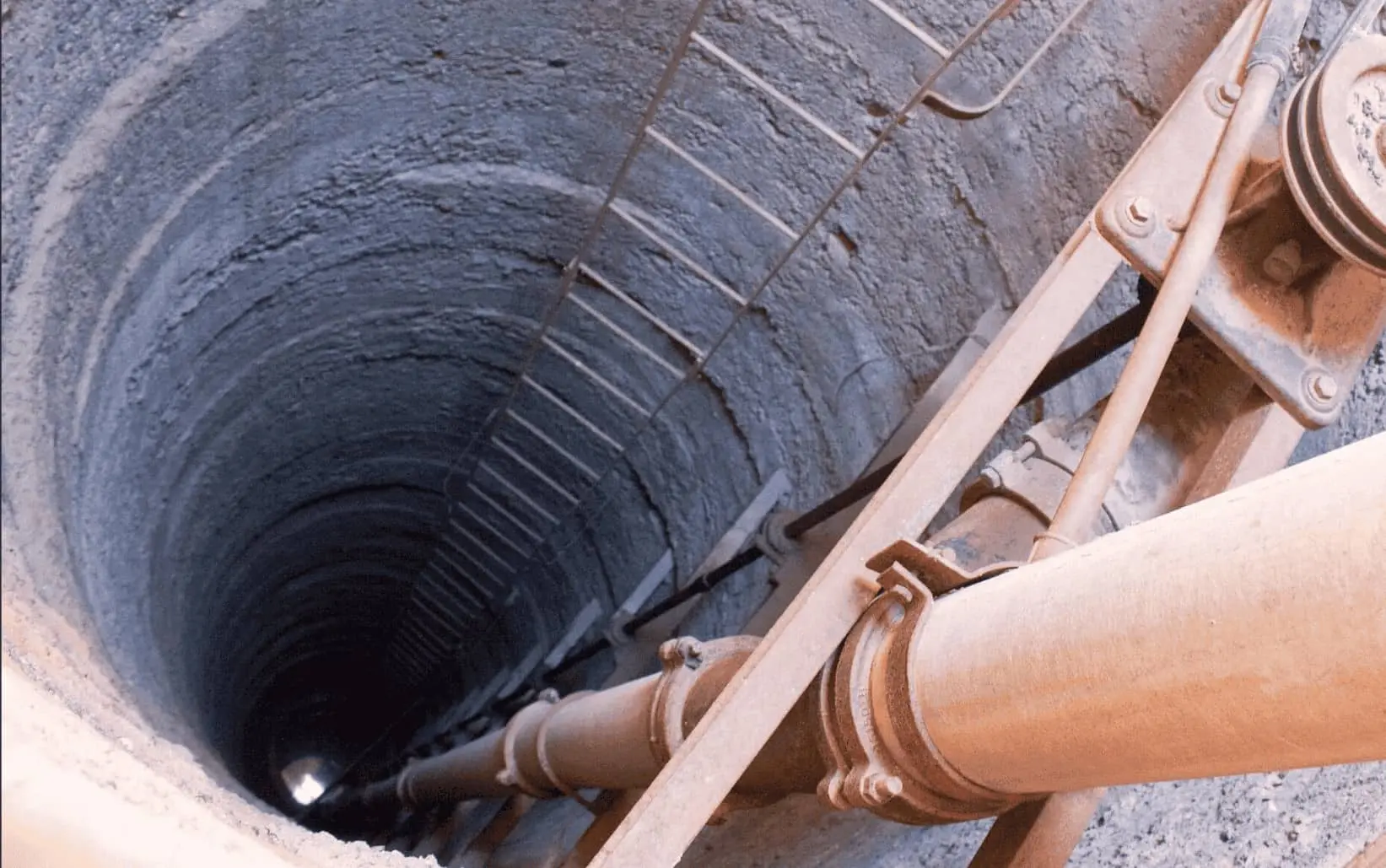

- Design Flexibility: The tubular design allows for various installation configurations, including deep groundbeds, horizontal installations, and distributed anode systems.

This versatility reduces the need for different types of anodes in varied applications, simplifying inventory management and system design.

4. Reduced Environmental Impact

In an era of increasing environmental awareness, the eco-friendly characteristics of MMO Titanium Tubular  Anodes provide a significant advantage over some traditional anode materials. These environmental benefits include:

- Low Dissolution Rate: The minimal consumption of anode material means less metal is released into the environment over time.

- Non-Toxic Materials: The components of MMO Titanium Tubular Anodes are generally considered non-toxic, unlike some traditional anodes that may contain harmful substances.

- Energy Efficiency: The high efficiency of these anodes can lead to reduced power consumption in impressed current systems, contributing to lower energy use and associated environmental impacts.

5. Improved System Design and Performance

The use of MMO Titanium Tubular Anodes often leads to improvements in overall cathodic protection system design and performance:

- Compact Design: Due to their high current capacity, fewer MMO Titanium Tubular Anodes may be required to achieve the same level of protection as systems using traditional anodes, leading to more compact and efficient designs.

- Uniform Current Distribution: The tubular shape and consistent performance of these anodes contribute to more uniform current distribution, ensuring comprehensive protection of the target structure.

- Reduced Interference: The stable performance of MMO Titanium Tubular Anodes can help minimize electrical interference with nearby structures or systems, a common concern in dense industrial environments.

Where are MMO Tubular Titanium Anodes commonly applied in industrial settings?

MMO Titanium Tubular Anodes have found widespread application across various industrial sectors due to their superior performance characteristics and versatility. These anodes play a crucial role in corrosion protection systems for a diverse range of structures and equipment. Let's explore some of the key industrial settings where MMO Titanium Tubular Anodes are commonly applied:

1. Oil and Gas Industry

The oil and gas sector is one of the primary users of MMO Tubular Titanium Anodes. In this industry, corrosion protection is critical due to the harsh environments and high-value assets involved. Common applications include:

- Pipelines: Both onshore and offshore pipelines benefit from cathodic protection using MMO Tubular Titanium Anodes. These anodes help prevent external corrosion, which is crucial for maintaining the integrity of oil and gas transportation systems.

- Offshore Platforms: The marine environment is particularly corrosive, making MMO Tubular Titanium Anodes essential for protecting the submerged portions of offshore drilling and production platforms.

- Storage Tanks: Large storage tanks for oil and gas products are protected using these anodes, often in combination with protective coatings.

- Well Casings: In some cases, MMO Tubular Titanium Anodes are used to protect the exterior of well casings from corrosion, especially in deep well applications.

2. Marine and Shipping Industry

The marine environment is notoriously corrosive, making effective cathodic protection crucial. MMO Tubular Titanium Anodes are widely used in this sector for:

- Ship Hulls: These anodes are often installed as part of impressed current cathodic protection systems on large vessels to protect the hull from corrosion.

- Port Structures: Jetties, piers, and other harbor structures benefit from the corrosion protection provided by MMO Titanium Tubular Anodes.

- Offshore Wind Farms: The submerged structures of offshore wind turbines are protected using these anodes, ensuring the longevity of these renewable energy installations.

- Underwater Pipelines: Subsea pipelines for various purposes, including oil and gas transportation and water intake/outfall systems, are protected using MMO Titanium Tubular Anodes.

3. Water and Wastewater Treatment

In the water and wastewater industry, MMO Tubular Titanium Anodes play a vital role in protecting critical infrastructure:

- Water Storage Tanks: Large water storage tanks, both above ground and underground, are protected from corrosion using these anodes.

- Water Distribution Pipelines: Municipal water supply networks often employ MMO Titanium Tubular Anodes as part of their corrosion protection strategy.

- Wastewater Treatment Plants: Various metal structures within wastewater treatment facilities, including tanks, pipelines, and processing equipment, are protected using these anodes.

- Desalination Plants: The corrosive environment in desalination facilities makes MMO Titanium Tubular Anodes essential for protecting key components.

4. Power Generation and Distribution

The power sector relies heavily on MMO Titanium Tubular Anodes for protecting various assets:

- Power Plant Cooling Systems: Water intake structures and cooling water pipelines in power plants are often protected using these anodes.

- Hydroelectric Dams: Metal structures associated with hydroelectric power generation, such as penstocks and gates, benefit from cathodic protection using MMO Titanium Tubular Anodes.

- Transmission Towers: The base structures of high-voltage transmission towers, particularly those in corrosive soil conditions, are protected using these anodes.

- Substation Grounding Systems: MMO Titanium Tubular Anodes are sometimes used to protect substation grounding grids from corrosion, ensuring long-term electrical safety and performance.

5. Chemical and Petrochemical Industry

The corrosive nature of many chemicals handled in this industry necessitates robust corrosion protection:

- Storage Tanks: Tanks storing various chemicals and petrochemical products are protected using MMO Titanium Tubular  Anodes.

- Process Pipelines: Pipelines transporting corrosive chemicals within production facilities benefit from cathodic protection using these anodes.

- Heat Exchangers: In some applications, the external surfaces of heat exchangers are protected using MMO Titanium Tubular Anodes.

- Reaction Vessels: Large metal reaction vessels in chemical plants may employ these anodes as part of their corrosion protection strategy.

In conclusion, MMO Titanium Tubular Anodes are a cornerstone in the fight against corrosion, providing reliable and long-lasting protection across a wide range of industrial applications. Their exceptional performance, durability, and adaptability make them an essential choice for ensuring the longevity of critical infrastructure in even the most challenging environments.

If you are interested in the products of Xi'an Taijin New Energy & Materials Sci-Tech Co., Ltd., please contact yangbo@tjanode.com.

References:

1. NACE International. (2013). "Cathodic Protection Design" (Standard RP0169-2013).

2. Huang, Y., & Zhao, Y. (2018). "Electrochemical Behavior and Performance of Mixed Metal Oxide Coated Titanium Anodes for Cathodic Protection."

3. Zhang, T., & Gu, T. (2019). "Advances in Anodes for Impressed Current Cathodic Protection Systems."

4. Zhao, J., & Li, X. (2020). "Influence of Backfill Materials on the Performance of MMO Tubular Anodes in Cathodic Protection."

5. Yuan, H., & Li, S. (2021). "Long-term Performance of MMO Anodes in Different Soil Environments for Cathodic Protection."

6. Li, Y., & Zhao, Y. (2022). "A Comprehensive Review of MMO Anodes: Materials, Performance, and Applications in Cathodic Protection."

7. Zhao, Y., & Huang, Y. (2023). "The Role of MMO Tubular Anodes in Modern Cathodic Protection Systems: A Case Study Approach."
