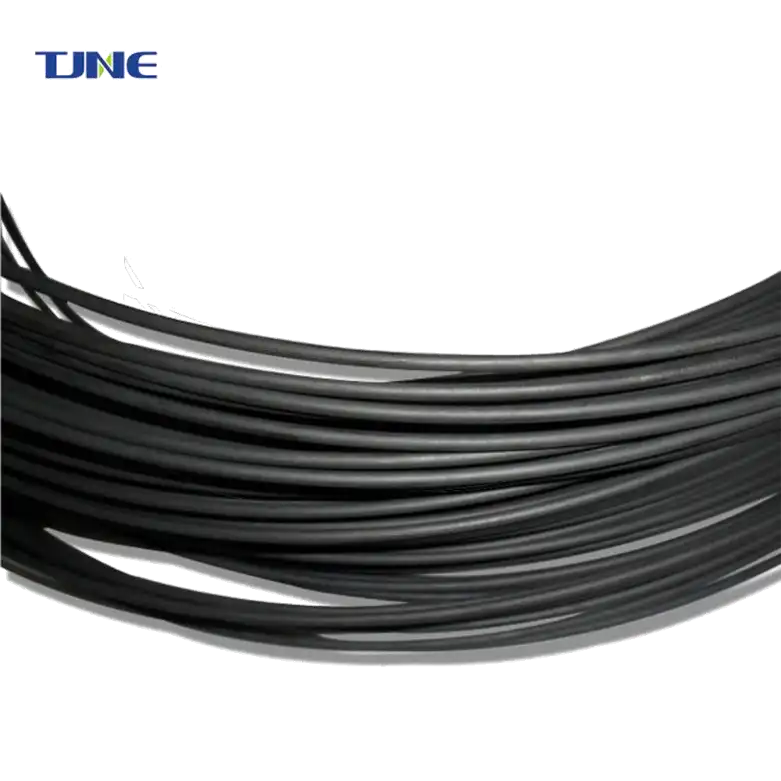

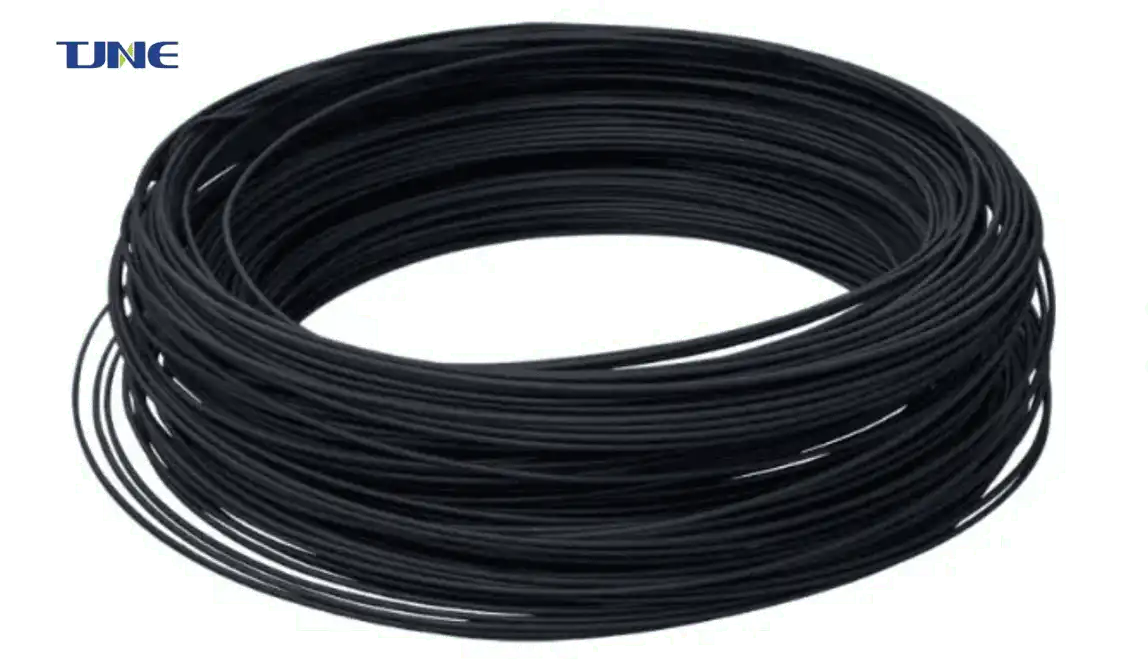

MMO Wire Anode
2.Coating: Iridium-tantalum coating in soil environment, and ruthenium-iridium coating in seawater environment, in line with NACE Standard TM0108-2008
3.Accelerated life testing: More than 73 days in 1mol/l Na2SO4, 10000A/m2
4.Specification: Available in 1.0, 1.5, 3.0mm diameters according to customer requirements
5.Application: Suitable for assembly into MMO flexible anodes and cathodic protection projects for inner wall of pipeline, water heater liners and others
6.Service: Providing substrate composition detection; process inspection (machining size, sandblasting particle size, pre-treatment surface condition, etc.); finished product testing (accelerated life testing, coating bonding strength testing, coating thickness testing, etc.)
MMO Wire Anode Introduction
MMO Wire Anode is a high-performance anode used in various cathodic protection applications. It is designed to provide long-lasting protection against corrosion in diverse environments. MMO titanium wire anode is made of titanium wire with a mixed metal oxide (MMO) coating. The MMO coating enhances the anode's corrosion resistance and increases its current efficiency. The coating thickness and surface area can be customized according to specific project requirements. The anode's characteristics include uniform current distribution, high efficiency, and outstanding durability.The MMO-coated titanium wire anode exhibits an exceptionally low consumption rate. The anode's operational lifespan depends on the current used for a specific application. During its service life, the size of the titanium wire anode remains almost unchanged. The inherent elasticity and stability of titanium give the wire anode considerable installation flexibility. The titanium wire is not affected by surge currents and can withstand higher current overloads during initial polarization without damaging the anode.
- Exceptional Corrosion Resistance: The MMO Wire Anode exhibits an unparalleled ability to shield against corrosion. Its distinctive design and superior materials render it highly resistant to the detrimental impacts of rust and degradation.
- Optimized Current Efficiency: This system is meticulously engineered to deliver an elevated level of current efficiency, ensuring that it adeptly and resourcefully combats the corrosion of metal structures, such as pipelines and water heaters.
- Even Current Dispersal: Among the foremost advantages of this cathodic protection system is its capability to uniformly disperse protective current across the structure’s surface, thwarting localized corrosion and ensuring comprehensive coverage.
- Tailored Coating Thickness and Surface Area: This system provides adaptability concerning coating thickness and surface area. It can be customized to suit the specific requirements of diverse applications, ensuring a precise and efficient solution.
- Economical Resolution: The MMO Wire Anode not only excels in effectiveness but also proves cost-efficient. Its capacity to extend the lifespan of structures and reduce the necessity for frequent maintenance renders it an economically sound choice.
- Minimal Long-Term Maintenance Expenditure: By substantially diminishing the maintenance demands of safeguarded structures, this cathodic protection system aids in minimizing long-term maintenance costs, ultimately conserving both time and resources.
- Robust and Enduring: The MMO Wire Anode is constructed for long-lasting performance. Its sturdy build and utilization of top-quality materials guarantee its sustained effectiveness over an extended duration, offering prolonged safeguarding against corrosion.
Specification
|
Diameter (mm) |
Length (m) |
Weight (kg) |
Surface area (m2) |
Output current (A) |
Life (a) |
|---|---|---|---|---|---|
|
1.0 |
100 |
0.35 |
3.14×10-3 |
≤100 |
20 |
|
1.5 |
100 | 0.79 |
4.71×10-3 |
≤100 |
20 |
|
3.0 |
100 | 3.18 |
9.42×10-3 |
≤100 |
20 |
The maximum output current density of the MMO wire anode is affected by the electrolyte, as shown in the table :
| Eletrolyte | Carbon backfill | Calcined coke | Freshwater | Silt | Seawater |
| Maximum current density (A/m2) | 50 | 100 | 100 | 100-300 | 600 |
Technical parameter for substrate:
| Composite | Coefficient of thermal expansion | Thermal conductivity (20℃) | Elongation | Resistivity |
| ASTM Standard B348 grade1 | 8.7X10-5/K | 15.6W/(m·K) | ≥10% | 0.000056ohm·cm |
Applications

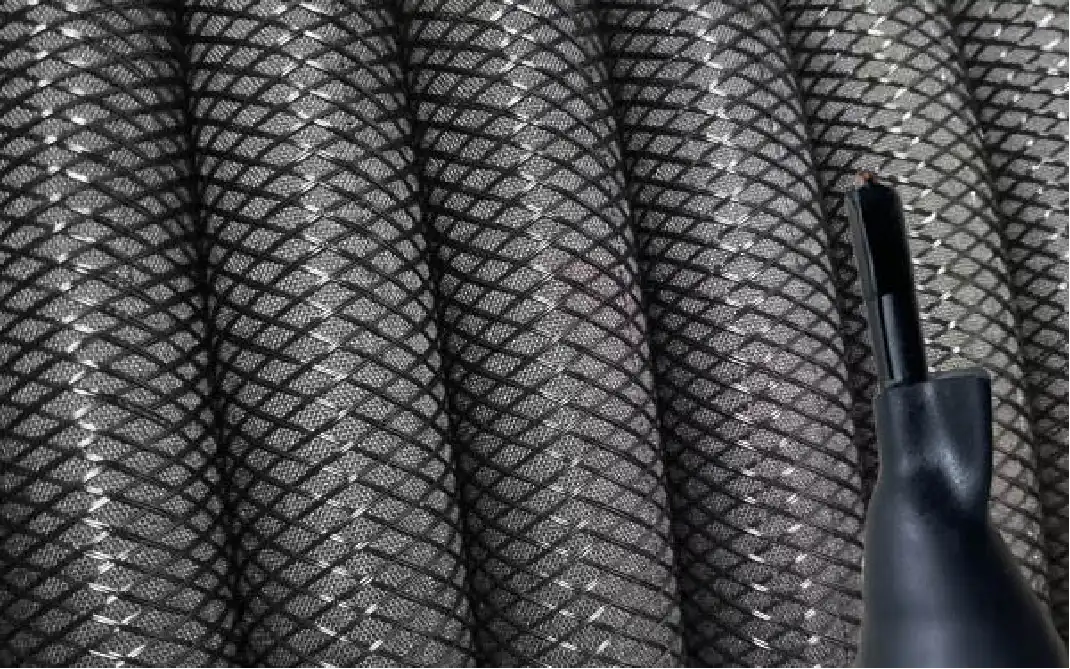

MMO flexible anode
It can be combined with cables to form an MMO flexible anode, well-suited for pipeline, storage tank floors and industrial infrastructures, etc. This unique coating of crystalline, electrically conductive noble metal oxide activates the titanium wire, allowing it to function effectively as an anode.

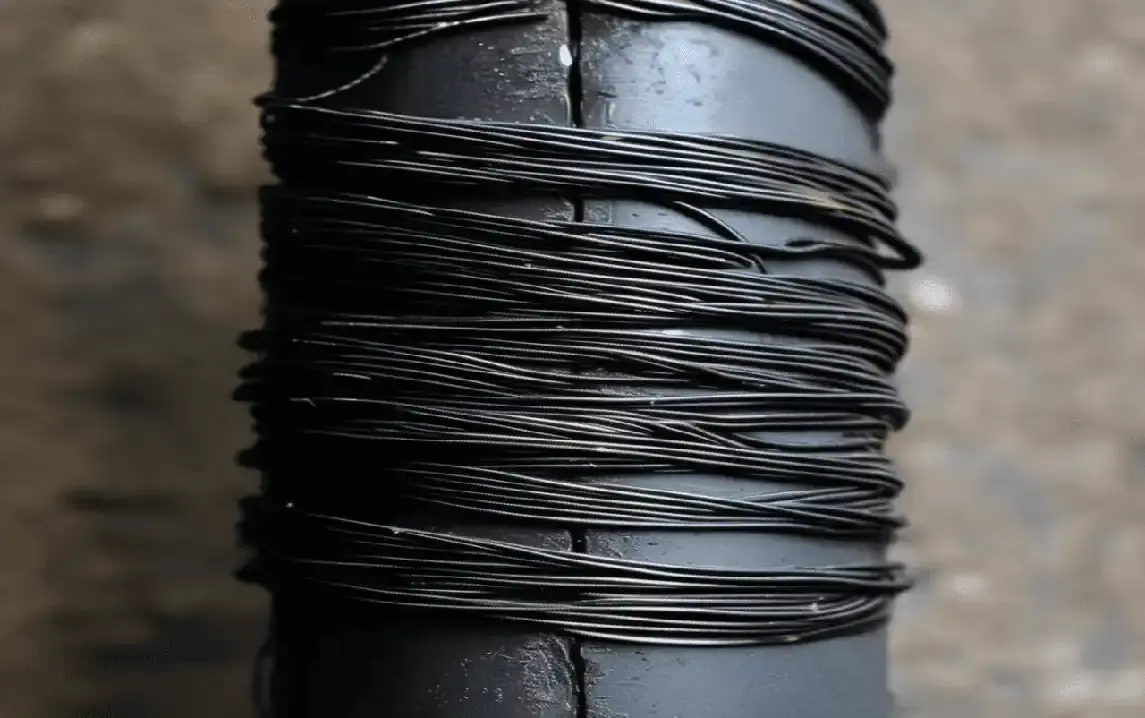

Pipeline
This MMO wire anode is produced by applying a multi-layer noble metal oxide catalyst to a high-tensile solid titanium wire substrate that conforms to ASTM B338 GR1 standards. Our MMO wire anode can be connected to a feed cable at one end or piggybacked to create a continuous anode suitable for installing beneath storage tanks or providing uninterrupted protection for pipelines.

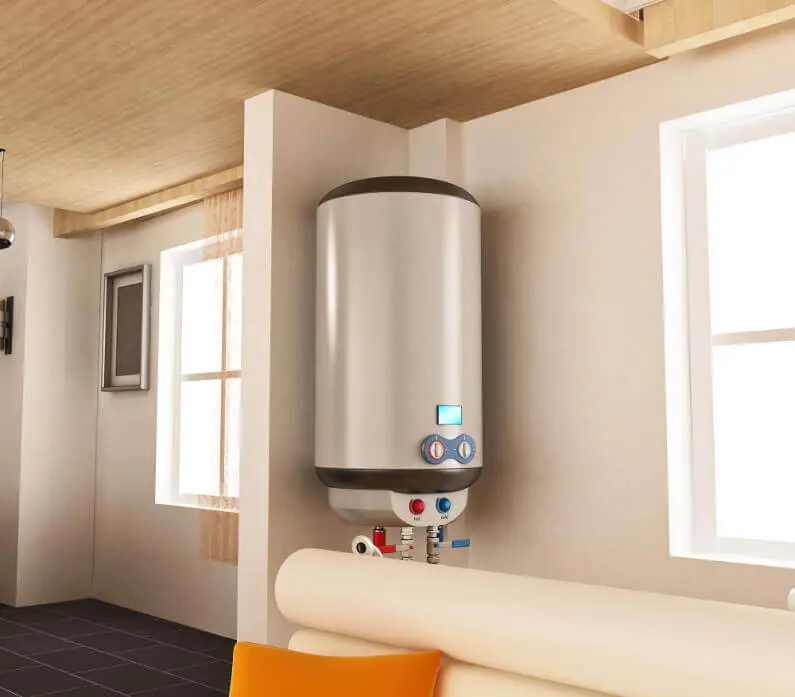

Water heater liner
MMO wire anode is also effective for safeguarding the internal surfaces of water heaters. Their flexible shape ensures even current distribution, which is particularly valuable in areas where water levels can vary significantly.

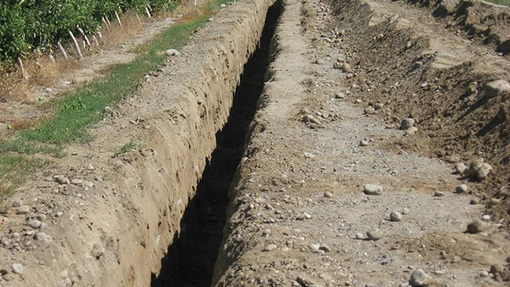

Ground bed

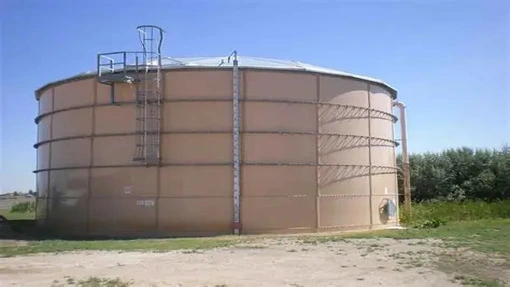

Storage tank

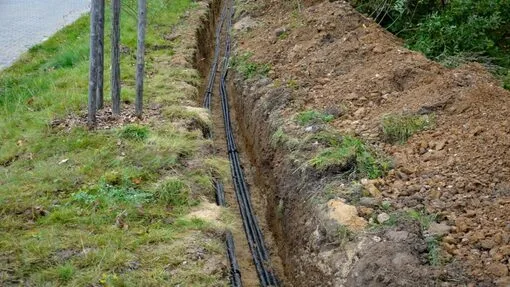

Cable protection
FAQ
Q: Can the coating thickness be customized?
A: Yes, the coating thickness can be tailored to meet specific project requirements. To extend the anode's life, you have the option to increase the coating thickness or reduce the current density.
Q: What is the typical lifetime of the MMO Wire Anode?
A: The anode has a lifetime of over 20 years, ensuring long-term corrosion protection.
Q: How fast is the delivery?
A: We offer fast delivery to meet project timelines and customer requirements.
If you are looking for a reliable MMO Wire Anode for your project, feel free to contact us at yangbo@tjanode.com
TJNE is a leading manufacturer and supplier of MMO Wire Anode. We provide high-quality products, professional technical expertise, comprehensive after-sales services, and complete certification and testing reports. Our products are well-packaged and support testing for optimum performance.
