Titanium Anode for Cobalt Electrowinning

Titanium Anode for Cobalt Electrowinning

Material: Titanium substrate with precious metal coating (Ir, Ru, Ta, etc. oxides), or PbO2
Features: It can be used stably in chlorination and sulfuric acid systems, has a long service life, and can significantly reduce cell voltage during the electrowinning reaction
Product advantages: After the surface active layer fails, it can be recoated, and the titanium substrate can be reused
Application conditions: current density ≤2000A/m2, H2SO4≤500g/L, F-≤1500ppm, oil content≤10ppm, temperature＜60℃
Application fields: Cobalt chloride electrolysis for cobalt electrowinning, cobalt sulfate electrolysis for cobalt electrowinning
Service: We provide secure and reliable packaging, fast delivery, comprehensive customer support and testing

View More

Platinium Coated Titanium Rod

Platinium Coated Titanium Rod

Platinum coated titanium rods are highly specialized materials, created by applying a thin layer of platinum onto a titanium rod substrate. With its strong technical expertise, Xi'an Taijin New Energy Technology Co., Ltd. is an ideal supplier of platinium coated titanium rod with corrosion resistance, high conductivity, durability and lightweight.
1.Substrate material: TA1, TA2
2.Coating: Platinum with thickness ranging from 0.5-5μm
3.Temperature: less than 80℃
4.pH level: 1-12
5.Service: Providing reports of chemical composition, certificate of conformity, etc. and strict packing and timely delivery.

View More

Platinium Coated Titanium Felt

Platinium Coated Titanium Felt

Platinum coated titanium felt is a high-performance material created by coating titanium felt—a porous, fibrous material made from fine titanium fibers—with a thin layer of platinum. This unique combination of materials combines the structural and corrosion-resistant properties of titanium with the high conductivity and catalytic properties of platinum. Platinium coated titanium felt produced by TJNE finds its applications in PEM electrolyzer.
1.Material: TA1, TA2
2.Porosity: 60%-75%
3.Size: 1500*1200mm (customizable)
4.Thickness: 0.25-1mm (customizable)

View More

Ozone Electrolysis

Ozone Electrolysis

Electrolytic ozone anode is an electrode technology developed by Xi'an Taijin New Energy & Material Sci-Tech Co., Ltd., which is suitable for sterilization and decolorization applications. When powered on, it can convert tap water into a solution rich in ozone and hydroxyl groups. The method of generating ozone is efficient and safe, and can be widely used in water treatment, disinfection, and decolorization functions in household appliances..
This technology has the following advantages
1. Material: Made of GR1, GR2 titanium material
2. Coating: Tin oxide coating
3. Ozone concentration: 1-4.5ppm (60ml aqueous solution)
4. Shapes can be customized, such as plate, mesh, etc

View More

Platinized Titanium Plate

Platinized Titanium Plate

Platinum, with its superb conductivity, chemical inertness, and resistance to oxidation, is coated onto the titanium plate, creating a surface that withstands both physical and chemical wear. Platinized Titanium Plates are integral to industries such as healthcare, chemical processing, water treatment, and hyrogen production, providing both performance and longevity in challenging settings.
1.Substrate material: TA1, TA2
2.Coating: Platinum coating and can be customized to 0.5-10 µm coating thickness
3.Plate size and thickness: various options available (customizable)
4.pH level: 1-12

View More

Electrolytic Ozone

Electrolytic Ozone

Electrolytic Ozone is a cutting-edge, environmentally acceptable method of treating water that effectively degrades COD, disinfects water, and decolorizes by creating ozone with electrochemical technology.
This technology has the following advantages
1. Material: Made of GR1, GR2 titanium material
2. Coating: Tin oxide coating
3. Ozone concentration: 1-4.5ppm (60ml aqueous solution)
4. Shapes can be customized, such as plate, mesh, etc

View More

Platinum Plated Titanium Mesh

Platinum Plated Titanium Mesh

Platinum-plated titanium mesh is a type of material commonly used in applications requiring high corrosion resistance, conductivity, and durability. Platinum-coated titanium mesh offered by TJNE is a high-performance material that shines in applications requiring strength, biocompatibility, and chemical resistance.
1.Substrate material: TA1, TA2
2.Coating: Platinum coating and can be customized to 0.5-10 µm coating thickness
3.Mesh size: various options available (customizable)
4.Working current: ≤5000A/m2

View More

Electrolytic Production of Ozone

Electrolytic Production of Ozone

Electrolytic ozone production technology uses electrolysis of water to produce ozone, which can improve the oxidation of water bodies and meet customers' needs for water disinfection, decolorization, and COD degradation.
This technology has the following advantages
1. Material: Made of GR1, GR2 titanium material
2. Coating: Tin oxide coating
3. Ozone concentration: 1-4.5ppm (60ml aqueous solution)
4. Shapes can be customized, such as plate, mesh, etc

View More

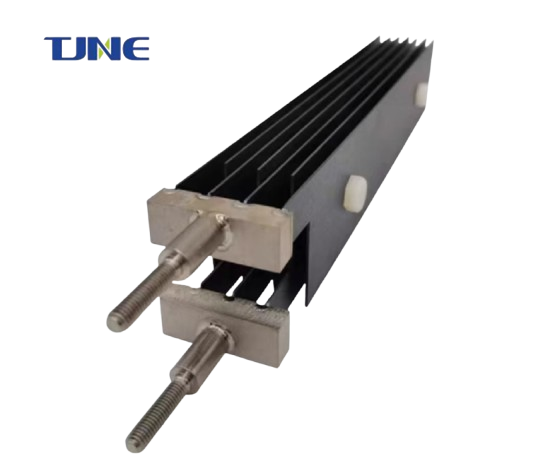

Swimming Pool Disinfection

Swimming Pool Disinfection

1.Material: Made of GR1, GR2 titanium material.
2.Coating: Coated with ruthenium and iridium coatings. Generation of effective chlorine concentration: ≥9000 ppm.
3.Coating thickness: 0.2-20μm, maintaining stable operation in swimming pool disinfection. Chlorine precipitation anode life >5 years, cathode life >20 years.
4.Specification: Available in 50g/h, 100g/h, 200g/h, 300g/h, 1000g/h, 5000g/h and more.
5.Consumption: Salt consumption: ≤2.8 kg/ kg·Cl, DC power consumption: ≤3.5 kwh/kg·Cl, power consumption: 60W.
6.Working parameter: Input voltage: 110-240 V, water flow rate:10-20 liters per minute.
7.Application: Used for swimming pool disinfection, including residential swimming pools, commercial swimming pools, public swimming pools, hotels and resorts and sports facilities.

View More

Hermetic Connectors

Hermetic Connectors

Product name: Hermetic Connectors
Product Overview: Hermetic connectors play a vital role in ensuring the integrity of critical electronic systems by providing a reliable seal against environmental elements.
Product advantages: Airtight Sealing, High Hermeticity, Rugged Construction, Customizable Solutions
Technical advantages:
They are engineered to withstand extreme conditions including high-pressure differentials, temperature variations, and exposure to moisture
After-sales service: Providing timely and high-quality worldwide services

View More

RF Connectors

RF Connectors

Product name: RF Connectors
Product Overview: RF connectors are designed to facilitate the efficient transfer of high-frequency signals while maintaining signal integrity.
Product advantages: High-Frequency Flag Transmission, Precision Building, Durability, Unwavering quality, etc.
After-sales service: Providing timely and high-quality worldwide services

View More

Micro-D Connector

Micro-D Connector

Product name: Micro-D Connector
Product Features: The Micro-D connector is characterized by its small size, high contact density, and robust construction.
Operating Temperature: -55°C to +125°C.
Insulation Resistance: 5000MΩ at 300 VDC
Durability: Up to 1000+,500+ mating cycles
After-sales service: Providing timely and high-quality worldwide services

View More
