Titanium Anode for Cobalt Electrowinning
Features: It can be used stably in chlorination and sulfuric acid systems, has a long service life, and can significantly reduce cell voltage during the electrowinning reaction
Product advantages: After the surface active layer fails, it can be recoated, and the titanium substrate can be reused
Application conditions: current density ≤2000A/m2, H2SO4≤500g/L, F-≤1500ppm, oil content≤10ppm, temperature
Application fields: Cobalt chloride electrolysis for cobalt electrowinning, cobalt sulfate electrolysis for cobalt electrowinning
Service: We provide secure and reliable packaging, fast delivery, comprehensive customer support and testing
Titanium Anode for Cobalt Electrowinning Introduction
High-purity cobalt is commonly prepared by electrowinning, with electrolytes including chloride and sulfate systems. The Titanium Anode for Cobalt Electrowinning can be used in chloride and sulfate systems. Xi'an Taijin New Energy & Materials Sci-Tech Co., Ltd. can provide titanium-based precious metal anodes that meet production requirements for different working systems. Titanium-based lead dioxide anodes can be used for cobalt electrowinning in sulfate systems. At present, the titanium-based lead dioxide anodes produced by TJNE have been widely used in most cobalt production companies both domestically and internationally. We can now customize titanium-based lead dioxide anodes with different structures according to customer needs. Mixed noble metal oxide coatings can be stably used in both chloride and sulfate systems, significantly reducing cell voltage during the electrowinning process, providing obvious energy-saving effects, having a long service life, and allowing the active layer to be recoated after deactivation, with the substrate being reusable.

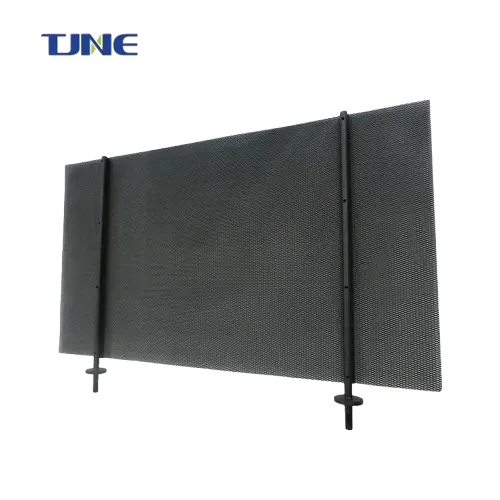

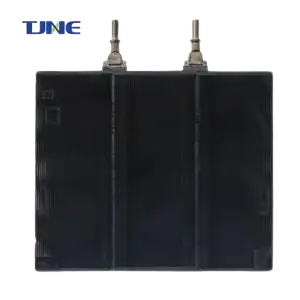

The anode is a specialized product designed for various cobalt electrowinning applications. It offers superior performance as an anode for cobalt electrowinning processes. It consists of a high-purity titanium substrate bar or plate with a specially fabricated precious metal oxide or PbO2 coating.
Features
- High-quality electroplated titanium material
- Efficient cobalt electrowinning
- Excellent chemical and reaction properties
- Reliable performance
The titanium anode provides excellent conductivity, activation efficiency, and dimensional stability in cobalt plating baths for optimal plating speed and uniformity. It is configured as durable plates or mesh baskets to suit the plating tank design and can be periodically reactivated to restore optimal performance. Compared to graphite and cobalt-based anodes, the Titanium Anode for Cobalt Electrowinning facilitates faster, more efficient cobalt electrowinning while minimizing power consumption and bath contamination.
Functions
The titanium anode functions as the anode to provide uniform and efficient delivery of cobalt ions during the electrowinning process. The dimensional stability of the titanium substrate prevents damage from internal stresses during repeated plating cycles. The large surface area allows higher electrowinning rates versus alternate anode materials. Periodic anode activation restores the optimal current distribution and electrowinning efficiency as needed after extended use.
This maintains a controlled cobalt ion flux to the cathode workpieces for consistent, high-quality cobalt deposition. The inert titanium material avoids contamination of the plating bath solution compared to soluble anodes. By supporting high speeds, efficiency, and process control, the Titanium Anode for Cobalt Electrowinning maximizes productivity and minimizes costs for cobalt electrowinning.
Contact Us
TJNE is a professional manufacturer and supplier of Titanium Anode for Cobalt Electrowinning. We have strong technical expertise and provide a one-stop solution for your electrowinning requirements. Our products are certified and thoroughly tested, ensuring top-notch quality. We offer fast delivery and secure packaging. Contact yangbo@tjanode.com today!
