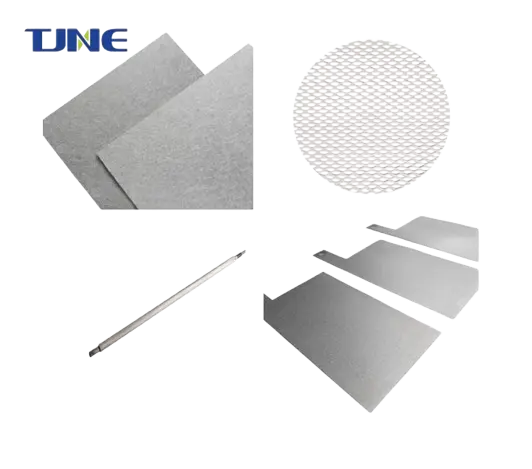

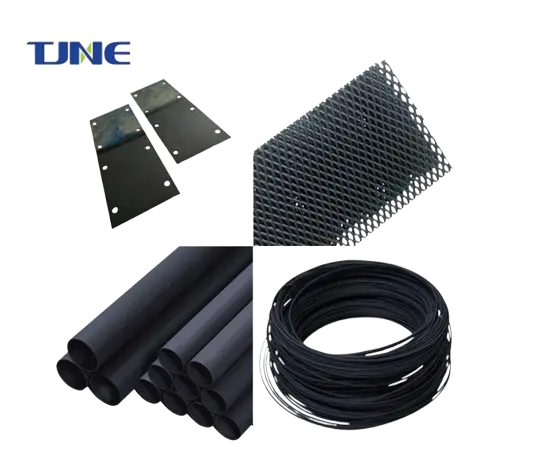

DSA ANODE

Product name: DSA ANODE
Product Overview: An anode material used in electrochemical processes
The main component of the product: is Ti (titanium).
Product advantages: It has excellent corrosion resistance, low oxygen evolution overvoltage, and does not pollute cathode products.
It is expected to replace the traditional Pb anode and achieve energy saving.
Application areas: metal electrowinning, electroplating industry, microbial fuel cells, electrochemical energy storage systems, environmental protection fields, etc.
Product after-sales and service: We provide timely and high-quality new anode manufacturing and old anode recoating services globally.

ENQUIRENOW

DOWNLOAD NOW

Product Description

DSA ANODE Product Introduction

Product Details:

The DSA (Dimensionally Stable Anode) ANODE is a highly advanced electrode used in a range of electrochemical processes. It is designed to provide long-lasting and efficient performance in various applications.

The DSA Coating Titanium Anode utilizes a unique chemical composition and structure to ensure its stability and durability during electrochemical reactions. It is based on the principle of dimensionally stable electrodes, which prevent the anode from corroding or deteriorating over time. This allows for higher current densities and improved efficiency in processes such as electroplating, water treatment, and metal recovery.

Working Principle:

The DSA ANODE is primarily composed of a substrate material, typically titanium, coated with a thin layer of noble metal oxides (such as ruthenium, iridium, and titanium oxides). These oxides provide the necessary conductivity and catalytic properties for the anode to perform its electrochemical reactions effectively. The DSA ANODE's chemical composition promotes the formation of a stable passive film, preventing corrosion and ensuring a longer lifespan compared to traditional anodes.

System Composition and Structure:

The DSA Coating Titanium Anode consists of a titanium substrate with a uniform and continuous coating of noble metal oxides. This structure provides excellent electrical conductivity and stability during operation. The use of different noble metals in the coating allows for customization based on the specific application requirements.

Performance Parameters:

Parameter	Value
Current Density	Up to 5000 A/m²
Oxygen Evolution Potential	≥1.6 V
Chlorine Evolution Potential	≥3.0 V
Coating Thickness	10-30 μm

Technical Parameters:

Parameter	Value
Operating Temperature	-10 to 60°C
pH Range	0 to 14
Operating Current	Up to 5000 A
Service Life	Over 10 years

Economic Indicators:

Indicator	Value
Cost Savings	Up to 40% compared to traditional anodes
Longevity	Reduced maintenance and replacement costs

Features and Advantages:

Applications:

The DSA ANODE finds its applications in various industries, including:

Electroplating
Water treatment
Metal recovery
Electrolytic cell systems
Chemical production

FAQ:

What is a DSA ANODE?

The DSA ANODE is a dimensionally stable electrode designed for efficient electrochemical processes.

What are the advantages of using a DSA ANODE?

The DSA ANODE offers high current density, superior corrosion resistance, and a long service life compared to traditional anodes.

What applications can the DSA ANODE be used for?

The DSA ANODE is commonly used in electroplating, water treatment, metal recovery, electrolytic cell systems, and chemical production.

How long is the service life of the DSA ANODE?

The DSA ANODE has a service life of over 10 years.

If you are interested in selecting your own DSA Coating Titanium Anode or have any further inquiries, please feel free to contact us at yangbo@tjanode.com

Ion membrane electrolyzer

Acidized water electrolysis tank （ diaphragm）Effective chlorine concentration：10-120ppm Working life>5000 h Applications: Animal husbandry disinfection Disinfection of fruits and vegetables Deodorization Medical equipment disinfection

High concentration sodium hypochlorite generator (diaphragm electrolysis)

NaCl diaphragm electrolyzer

Electrolytic copper foil production machine

Product name: Electrolytic copper foil production machine Product overview: It is a composite equipment that integrates electrolysis, deposition, foil collection, surface treatment, and other functions. They are used to produce high-quality electrolytic copper foil. Scope of application: printed circuit boards, lithium-ion batteries, electronic components, and other fields. Performance parameters: Independently developed Mitsubishi/Lenz tension control system, tension control accuracy ± 3N, production line speed fluctuation value: ± 0.02 m/min Rewinding design achieves maximum diameter φ660-1000mm Oscillation frequency 0~300 times/min (stepless speed regulation) Visual current detection design, the polishing wheel polishing pressure can be directly read Product after-sales service: We provide timely, high-quality new anode manufacturing and old anode recoating services worldwide.

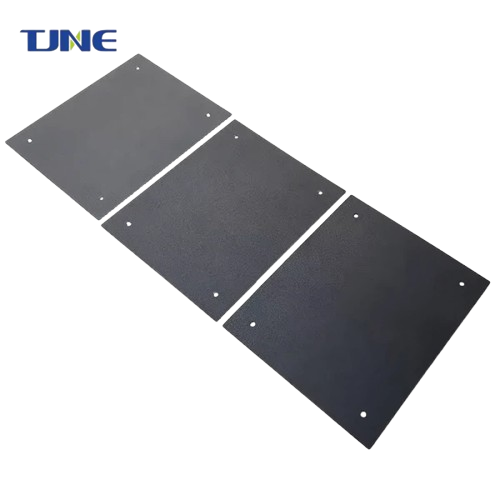

Wastewater Disinfection and Oxidation Anode
