Titanium Anode for Copper Electrowinning
Product features: When electrolyzed in the electrolyte, it has strong oxidation ability, corrosion resistance, a small amount of lead dissolution, good conductivity, and the ability to pass large currents
Product advantages: Compared with traditional lead anodes, the current efficiency can be increased by 2%, the lead dissolution rate is reduced by 99%, the service life is extended by 1 year, and the comprehensive use cost is reduced by 1%
Application conditions: current density ≤2000A/m2, H2SO4≤500g/L, F-≤1500ppm, oil content≤10ppm, temperature＜60℃
Application areas: Copper electrowinning
Service: We provide secure and reliable packaging, fast delivery, comprehensive customer support and testing
Titanium Anode for Copper Electrowinning Introduction
In the copper electrowinning process, the properties of the anode material directly affect indicators such as ion discharge potential, changes in overpotential, current efficiency, energy consumption, anode lifespan, and the quality of cathode products. For a long time, both domestically and internationally, lead alloy has continued to be used as the anode material in copper electrowinning production. However, the inherent defects of lead alloy severely restrict the improvement of enterprise economic benefits.
Regarding the current application status of lead anodes, Titanium Anode for Copper Electrowinning, TJNE’s newly developed titanium-based lead dioxide anode, can perfectly address the drawbacks of lead anode applications. It has been successfully used for several years in most domestic and international copper smelting companies, with performance significantly better than traditional lead anodes, meeting the current technical upgrade requirements.
Working Principle
The working principle of the copper electrowinning involves the electrochemical reaction between the copper ions in the electrolyte and the cathode face. The titanium anode acts as the anode, while the copper ions are reduced and deposited onto the face of the cathode, ensuring effective and harmonious copper electrowinning results.
Structure
The Titanium Anode for Copper Electrowinning, offered by TJNE, is a high-quality and efficient anode for copper electrowinning. Titanium anode is designed to give superior performance and continuity, icing high-quality copper electrowinning results.

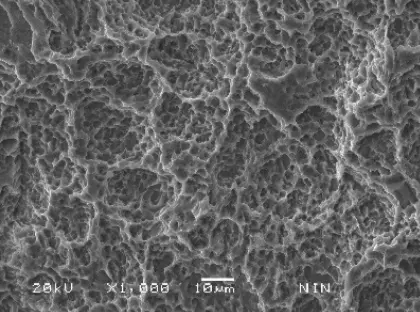

SEM image of titanium substrate
The anode's structure consists of a titanium substrate with a thin coating of high-quality metal oxide. The titanium substrate provides mechanical strength and stability, while the high-quality coating enhances the anode's electrical conductivity and provides excellent conductivity and erosion resistance, making it ideal for copper electrowinning processes.
Key Features
The anode's crucial features include high effectiveness, excellent erosion resistance, superior conductivity. These characteristics allow for high-quality copper electrowinning with invariant consistency and excellent adhesion. The anode also offers a long service life and can repel harsh operating conditions.
The Titanium Anode for Copper Electrowinning offers significant economic advantages, including high efficiency and excellent adhesion, make it an ideal choice for demanding copper electrowinning. The anode can provide efficient copper electrowinning, reducing material and energy wastage. Its excellent corrosion resistance ensures longer anode life, reducing replacement costs. The anode's superior conductivity improves electrowinning efficiency and reduces operation time.
Cathode product
FAQ
Q: Can the anode be used for other metal electrowinning processes?
A: The anode is specifically designed for copper electrowinning but can be customized for other metals as well.
Q: Is the electrode compatible with different plating solutions?
A: Yes, the electrode is compatible with a wide range of copper plating solutions and can be adapted to specific requirements.
Q: What is the size range achievable with this anode?
A: The shapes of anode include: mesh, plate, tube, etc., and maximum processing size is 1200×1500mm.
For more information or to inquire about our Titanium Anode for Copper Electrowinning, please contact us at yangbo@tjanode.com. We are a professional manufacturer and supplier with strong technical expertise and complete after-sales service. We offer fast delivery, secure packaging, and support for testing and certification. Choose TJNE for your titanium anode needs!
